Panther GS6T GNSS receiver

Panther GS19S is a Single Frequency L1 GPS receiver with RAW measurement collection and DGPS (Differential GPS) on module.GS19S also provide 10 Hz Frequency position information and features a Time Mode function where the GPS receiver assumes a stationary 3D position, whether programmed manually or determined by an initial self-survey.

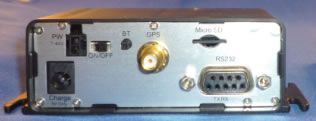

Interface

GS19sFace













Datasheet







GS6T

Stationary operation enables GPS timing with only one visible satellite and eliminates timing errors which otherwise result from positioning errors.The accuracy of the time pulse is as good as 50ns,synchronized to GPS or UTC time. An accuracy of 15ns is achievable by using the quantization error information to compensate the granularity of the time pulse. The built-in 2-channel timemark and counter unit provides precise time measurement of external signals. Panther GS19S support 1 serial and bluetooth, 1 Mico SD card for Data Collection storage.



































DATA SURPASS TECHNOLOGY CO., LTD.
1F, No. 74, YongCheng St.,West Dist., Taiwan
